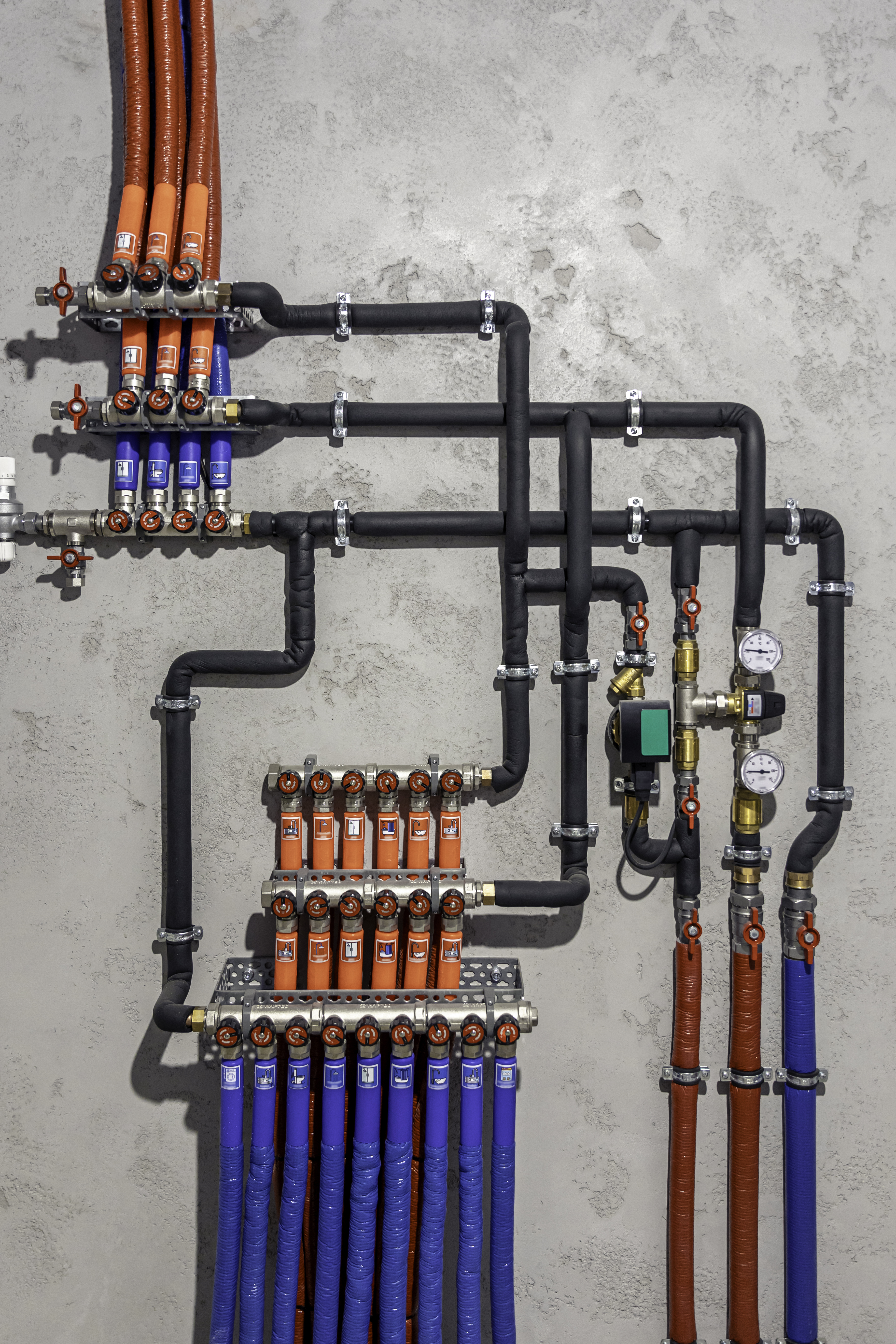

Heat Pump Pipe Insulation: How to Protect External Monobloc Pipework

When installing a monobloc air-to-water heat pump, attention naturally focuses on the heat pump itself.

However, the external pipes connecting the outdoor unit to the building are also part of the heating system.

Poorly insulated pipework can lose useful heat before it reaches the radiators, underfloor heating or hot-water cylinder. Damaged or incorrectly sealed insulation can absorb moisture, deteriorate outdoors and leave pipes or fittings unnecessarily exposed to winter conditions.

Correct heat pump pipe insulation is therefore not a cosmetic finishing detail. It is part of the system’s thermal design, weather protection and installation quality.

In October 2026, the Heat Pump Association UK published new MCS-endorsed guidance specifically covering the external hydraulic pipework of residential monobloc air-to-water heat pumps.

The guidance identifies several important principles:

• insulate all external hydraulic pipework;
• keep insulation reasonably continuous;
• seal joints and gaps;
• protect the insulation against water and ultraviolet radiation;
• avoid compressing it with clips or trunking;
• and follow the heat-pump and insulation manufacturers’ instructions.

These principles are relevant beyond the UK, although installers must always follow the regulations and technical requirements applicable in the project’s country.

What Pipes Need Insulating on a Monobloc Heat Pump?

A monobloc heat pump contains its refrigeration circuit within the outdoor unit.

Water from the building’s heating system circulates through hydraulic flow and return pipes between the outdoor unit and the building.

These external hydraulic pipes normally include:

• the heated flow pipe leaving the heat pump;
• the cooler return pipe entering the heat pump;
• external valves and fittings;
• drain points;
• sections passing through the external wall;
• and, depending on the design, antifreeze valves or other hydraulic components.

All exposed hydraulic pipework should be considered as part of the insulation design.

With a Tongyi R290 monobloc, the sealed refrigerant circuit remains in the outdoor unit. The building connection is hydraulic, but that does not remove the need to protect the external water pipes correctly.

Why Is External Heat Pump Pipe Insulation Important?

Correct insulation serves several purposes.

Reducing distribution heat loss

The water leaving the heat pump has already required electrical energy to reach its target temperature.

If the external flow pipe loses heat to the surrounding air, the heat pump must replace that lost energy. The amount depends on:

• water temperature;
• outdoor temperature;
• exposed pipe length;
• pipe diameter;
• insulation thickness;
• insulation condition;
• and material thermal conductivity.

A short external pipe run does not justify leaving it poorly protected. Heat loss continues whenever warm water circulates through the pipe.

Protecting the return temperature

The return pipe should also be insulated.

Although it normally carries cooler water than the flow pipe, it remains part of the controlled hydraulic circuit. Unwanted heat exchange with the outdoor environment can affect the conditions presented to the heat pump.

Avoiding thermal bridging between pipes

Flow and return pipes should be insulated separately.

If warm and cooler pipes touch or share damaged insulation, heat can transfer directly between them. This reduces the useful temperature difference available to the heating system.

Controlling condensation

If the heat pump provides cooling, the water pipes may operate below the surrounding air’s dew-point temperature.

Water vapour can then condense on unprotected pipes or enter gaps in the insulation.

Continuous, vapour-resistant insulation helps limit condensation, provided that all joints, fittings and penetrations are sealed correctly.

Supporting the system’s winter protection

Insulation slows heat transfer between the water and the outdoor environment.

However, insulation alone does not guarantee that water cannot freeze. It must form part of a wider protection strategy based on the heat-pump manufacturer’s requirements.

Pipe Insulation Is Not a Complete Freeze-Protection System

This distinction is important.

Insulation reduces the rate at which a pipe loses heat, but it does not generate heat and cannot provide unlimited protection during:

• prolonged sub-zero weather;
• a power failure;
• an extended system shutdown;
• circulation-pump failure;
• or unusually exposed installation conditions.

Depending on the system, the manufacturer may specify additional measures such as:

• glycol antifreeze;
• antifreeze valves;
• automatic circulation;
• trace heating;
• backup electrical protection;
• drain-down arrangements;
• or a combination of measures.

The correct solution depends on the heat pump, climate, installation and water circuit.

Do not add glycol or change its concentration without checking manufacturer requirements. Excessive or unsuitable glycol can alter viscosity, water flow, pump duty and heat-transfer performance.

Correct winter protection therefore combines:

insulation + hydraulic design + control logic + manufacturer-approved freeze protection

What Makes Pipe Insulation Suitable for Outdoor Use?

Not every foam sleeve is suitable for permanent outdoor installation.

External heat-pump insulation should be selected according to several technical properties.

Low thermal conductivity

Thermal conductivity is normally shown as a lambda or λ-value, measured in W/(m·K).

A lower λ-value means the material transfers less heat for a given thickness.

However, insulation thickness must still be selected according to:

• pipe diameter;
• material performance;
• water temperature;
• design outdoor conditions;
• and applicable standards.

High resistance to water-vapour diffusion

A material’s resistance to water-vapour movement may be expressed using its μ-value.

A higher μ-value means greater resistance to water vapour passing through the material.

This matters because wet insulation generally performs worse than dry insulation and may deteriorate more quickly.

Resistance to water ingress

External insulation is exposed to rain, snow, cleaning water and moisture entering through joints.

Even a suitable insulation material can perform poorly if:

• joints are left open;
• cut edges are not sealed;
• water enters behind the insulation;
• or the longitudinal slit faces upwards on a horizontal pipe.

Every joint and exposed edge must be treated as part of the weatherproofing system.

UV resistance

Sunlight can degrade materials that are not designed for outdoor use.

The insulation should therefore either:

• be inherently UV-resistant;
• have an approved weatherproof outer layer;
• or receive the protective coating specified by its manufacturer.

Ordinary indoor insulation should not simply be installed outdoors and assumed to remain suitable.

Suitable operating-temperature range

The insulation must tolerate the minimum and maximum pipe temperatures expected during heating, domestic-hot-water and cooling operation.

Mechanical durability

The finished installation should tolerate normal movement, wind exposure and service access without becoming crushed, detached or torn.

How Thick Should Heat Pump Pipe Insulation Be?

There is no universal insulation thickness for every heat-pump installation.

The required thickness depends on the pipe’s outside diameter and the insulation material’s thermal conductivity.

As a UK reference, the October 2026 HPA guidance reproduces base-level values derived from BS 5422:2023 for high-emissivity external surfaces.

These figures are a specific UK reference, not a universal specification for every project.

The installer should confirm:

• the actual pipe outside diameter;
• the insulation λ-value at the specified reference temperature;
• whether the outer surface is high- or low-emissivity;
• local regulatory requirements;
• and the insulation and heat-pump manufacturers’ instructions.

Selecting insulation only by appearance or nominal bore size is not sufficient.

Heat Pump Pipe Insulation Best Practice

1. Insulate both flow and return pipes

Both external hydraulic pipes should be fully insulated.

Do not assume the return pipe is cool enough to leave partially exposed.

2. Insulate the pipes separately

Flow and return pipes should not share one compressed insulation layer.

Separate insulation limits direct heat transfer between the pipes and allows each pipe to remain properly protected.

3. Keep the insulation continuous

Insulation should continue across:

• bends;
• T-branches;
• wall brackets;
• valves;
• clips;
• unions;
• drain points;
• and other obstructions.

Small exposed sections can become repeated points of heat loss and weather exposure.

4. Seal every joint and cut edge

The longitudinal slit, adjoining lengths and cut ends should be sealed using materials approved for the selected insulation system.

On horizontal sections, positioning a sealed slit downwards can help the surface shed water rather than directing it into the joint.

The surface should be clean and dry before applying compatible tape, adhesive or sealant.

5. Minimise unnecessary joints

Longer continuous insulation sections reduce the number of joints requiring weatherproof sealing.

Bends and pipe routing should be planned so the insulation can be fitted without creating numerous small offcuts.

6. Protect wall penetrations

Where pipes pass through an external wall:

• maintain insulation up to the thermal envelope;
• avoid compressing or damaging the insulation;
• sleeve copper pipe appropriately;
• protect the insulation against cavity debris;
• and seal the opening against moisture and uncontrolled air leakage.

Any fire-safety or structural requirements for the wall penetration must also be respected.

7. Do not crush insulation with clips

Clips should support the pipework without significantly compressing the insulation.

Overtightened cable ties or undersized clips can reduce insulation thickness and create local thermal bridges.

Use appropriately sized, weather-resistant supports suitable for insulated external pipework.

8. Do not use trunking as a substitute

Plastic trunking may improve appearance and provide additional physical or weather protection.

However:

trunking is not insulation.

The hydraulic pipes inside the trunking still require continuous, sealed and correctly sized insulation.

The trunking must also be large enough to avoid compressing the insulation.

What Happens When Insulation Gets Wet?

Wet insulation can become substantially less effective because water increases the rate at which heat passes through the material.

Moisture can enter through:

• unsealed joints;
• damaged external coatings;
• open trunking ends;
• gaps around valves;
• poorly sealed wall penetrations;
• or water collecting around an upward-facing slit.

Once moisture is trapped between the insulation and pipe, it may remain difficult to detect.

Potential consequences include:

• increased heat loss;
• deterioration of the insulation;
• corrosion of susceptible pipes or fittings;
• condensation problems;
• and damage to the building around wall penetrations.

Damaged or waterlogged insulation should normally be replaced rather than covered with another layer.

Pipe Insulation and Hydraulic Design

Insulation cannot correct a hydraulic design problem.

The pipe diameter, circulation pump, valves and system configuration must still provide the required heat pump water flow.

This is especially important because adding:

• antifreeze valves;
• additional filters;
• glycol;
• long pipe runs;
• undersized valves;
• or complex fittings

can affect pressure loss and system flow.

The external pipework must therefore be designed as both:

1. a thermal path that should minimise unwanted heat loss;
2. a hydraulic path that should deliver the required water flow.

Both functions matter.

Why Retrofit Installations Need Particular Attention

A heat-pump retrofit may reuse existing radiators and internal pipework after those components have been assessed.

Our guide to heat pump radiator sizing explains how to compare room heat loss with available radiator output.

However, reusing the internal heating system does not remove the need for correctly designed new external connections.

The external section between the monobloc heat pump and the building should be planned specifically for:

• the required flow rate;
• water temperature;
• design climate;
• freeze-protection method;
• insulation performance;
• wall entry;
• maintenance access;
• and weather exposure.

Does R290 Change the Pipe-Insulation Requirement?

The insulation principle is fundamentally a hydraulic-system requirement rather than a refrigerant-specific one.

However, R290 monobloc systems have an important configuration advantage: the sealed propane refrigeration circuit remains inside the outdoor unit, while insulated water pipes connect the unit to the building.

Installers must still follow all R290-specific requirements relating to:

• unit positioning;
• safety distances;
• drainage;
• ignition sources;
• openings into the building;
• and manufacturer-defined safety zones.

Pipe insulation should never obstruct required drainage, ventilation, servicing access or safety provisions.

The hydraulic insulation design and R290 safety design must therefore be considered together, while remaining separate technical requirements.

Common Heat Pump Pipe-Insulation Mistakes

Using indoor-only insulation outdoors

The material may deteriorate under sunlight, rain and temperature changes.

Leaving valves or fittings exposed

Every uninsulated component becomes a potential point of heat loss and weather exposure.

Leaving joints unsealed

Small openings can allow moisture to move behind the insulation.

Wrapping both pipes together

This can allow direct heat transfer between flow and return pipes.

Compressing insulation with clips

Reduced thickness creates a local weakness in the thermal protection.

Assuming trunking is enough

Trunking protects appearance and may reduce physical exposure, but does not replace insulation.

Treating insulation as the only freeze protection

Insulation slows cooling but does not protect indefinitely during sub-zero conditions or power loss.

Ignoring cooling operation

A system used for cooling may require a particularly effective continuous vapour barrier to control condensation.

External Pipe-Insulation Inspection Checklist

External insulation should be inspected as part of routine system maintenance.

Check for:

• open or separated joints;
• damaged protective coatings;
• UV degradation;
• water staining;
• wet or soft insulation;
• crushed areas around clips;
• exposed valves or fittings;
• damaged trunking;
• gaps around wall penetrations;
• sagging insulation;
• and evidence of condensation or corrosion.

HPA UK recommends checking external insulation lengths and joints annually and considering inspection inside accessible trunking every two to three years.

Always follow the insulation manufacturer’s maintenance instructions, especially where a protective coating requires periodic renewal.

External Monobloc Pipework: Installer Checklist

Before commissioning, confirm that:

1. Both external flow and return pipes are insulated.
2. The selected material is approved for outdoor use.
3. Insulation thickness matches the pipe size, material data and local requirements.
4. All joints and cut edges are sealed.
5. Valves, fittings and drain points are treated correctly.
6. The flow and return pipes are insulated separately.
7. Clips support the pipework without crushing the insulation.
8. Trunking does not compress or replace the insulation.
9. Wall penetrations are sleeved and sealed appropriately.
10. Cooling-mode condensation has been considered.
11. Freeze protection follows the heat-pump manufacturer’s instructions.
12. R290 safety distances and servicing access remain unobstructed.
13. The full hydraulic system has been flushed, filled, vented and commissioned correctly.

For the wider installation process, see Tongyi’s heat pump installation checklist.

The Takeaway

Correct heat pump pipe insulation helps the monobloc system deliver heat from the outdoor unit to the building without unnecessary distribution losses.

A good installation uses insulation that is:

• correctly sized;
• suitable for outdoor conditions;
• resistant to moisture and ultraviolet radiation;
• continuous around bends and fittings;
• sealed at every joint;
• and supported without being compressed.

Insulation also forms part of winter and condensation protection—but it does not replace manufacturer-approved freeze protection, correct water flow or proper commissioning.

The heat pump, hydraulic circuit and insulation must be designed as one complete system.

FAQ

Do external heat-pump pipes need insulation?

Yes. External hydraulic flow and return pipes should be insulated to reduce unwanted heat transfer and protect the installation from outdoor conditions.

What thickness should heat-pump pipe insulation be?

There is no single thickness for every installation. It depends on pipe diameter, insulation thermal conductivity, operating temperature and applicable standards.

Does plastic trunking count as pipe insulation?

No. Trunking can protect or conceal insulated pipes, but it does not replace correctly sized pipe insulation.

Will insulation prevent heat-pump pipes from freezing?

Insulation slows heat loss but cannot guarantee freeze protection during prolonged cold weather or power failure. Follow the heat-pump manufacturer’s freeze-protection requirements.

Should flow and return pipes be insulated together?

No. They should normally be insulated separately to reduce direct heat transfer and allow continuous protection around each pipe.

Why must external insulation be UV-resistant?

Sunlight can degrade unsuitable insulation and protective coatings, reducing their durability and thermal effectiveness.

Does an R290 monobloc have refrigerant pipes entering the building?

Normally, the complete refrigerant circuit is contained inside the monobloc outdoor unit. The building is connected through hydraulic flow and return pipes, subject to the specific model and installation design.
